Floor Mount Cubicle Systems
BestCube Engineering supplies Floor Mount Cubicle Systems for commercial, institutional, and industrial projects across Singapore. From Dormitory toilets to Office restrooms.
Manufactured using high-quality HPL Phenolic or PVC boards, our toilet cubicles are designed to withstand daily use with low maintenance. Combined with durable stainless steel or nylon hardware, our floor mounted toilet partition systems are engineered to perform reliably.
Built for Wet & Humid Environments
Engineered to withstand heavy daily use in Singapore’s wet, humid, and high-traffic conditions without warping, swelling, or delamination.
Clean-Friendly Surfaces
Highly Vandal-Resistant and waterproof surfaces allow quick and effortless cleaning, while the dense HPL/PVC structure offers exceptional resistance against scratches, graffiti, and impact.
Colour & Surface Stability
Fade-resistant materials that maintain their colour, finish, and structural stability over years of use even in demanding commercial environments.
Available in 3 options, Nylon Round Foot, Stainless Steel Round Foot, and Stainless Steel Boxed Foot configurations, each system is designed to meet different project requirements, from cost-effective installations to premium commercial developments.
1. Nylon Floor Mount System – Round Foot Pedestal
A cost-effective, corrosion-resistant option ideal for schools, factories, and industrial spaces.
Nylon Floor Mount Feature & Specifications
Cubicle Doors
- Material: 12mm compact laminate
- Hinges: Heavy-duty gravity self-closing hinges
- Edges: Chamfered edges, no metal trimmings
- Recommended Door Widths: Standard door – 600mm Ambulant door – 820mm
- Overall Door Height: 1900mm (measured from FFL to top of door, inclusive of 150mm floor gap)
Cubicle Pilasters
- Material: 12mm compact laminate
- Support: Fixed onto anodised aluminium top rail for maximum rigidity
- Recommended Pilaster Widths: Centre pilaster – 300mm End pilaster – 150mm
- Overall Pilaster Height: 2000mm (FFL to top of overhead rail, inclusive of 150mm floor gap)
Dividing Partitions
- Material: 12mm compact laminate
- Installation: Secured to wall and pilaster using extruded aluminium U-channels
- Maximum Recommended Width: 1800mm
- Overall Partition Height: 1980mm (FFL to top of divider, inclusive of 150mm floor gap)
Hardware Accessories – Nylon
Each cubicle comes with:
- Black Nylon thumbturn lockset (with emergency coin release)
- Black Nylon coat hook
- Black Nylon door knob
- Black Nylon adjustable leg (150mm height)
Aluminium Fittings
- Secured using extruded aluminium top rail for stability
- End panels fixed to wall with heavy-duty aluminium U-channels

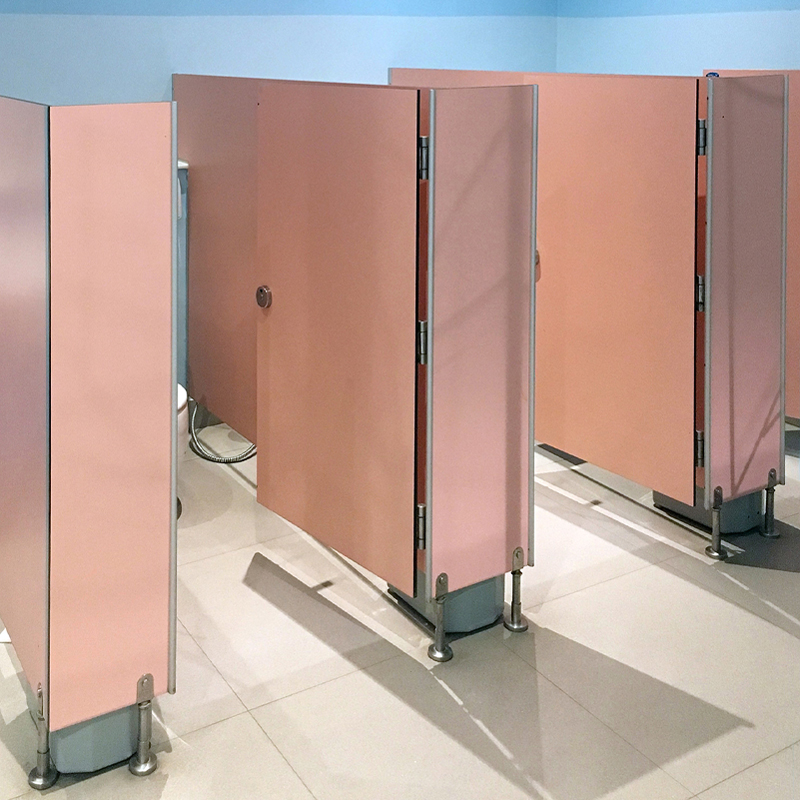

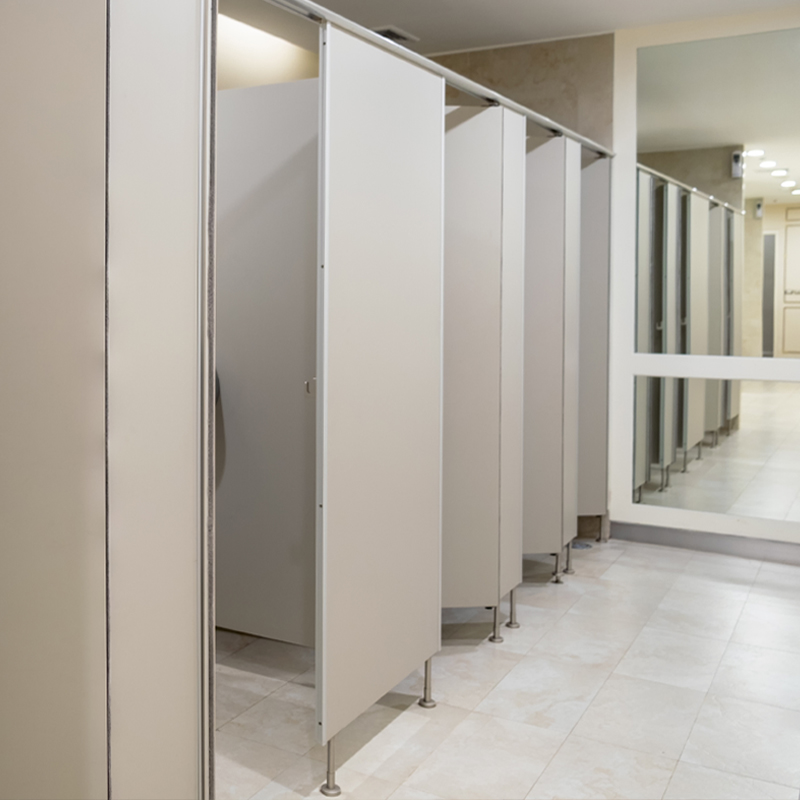

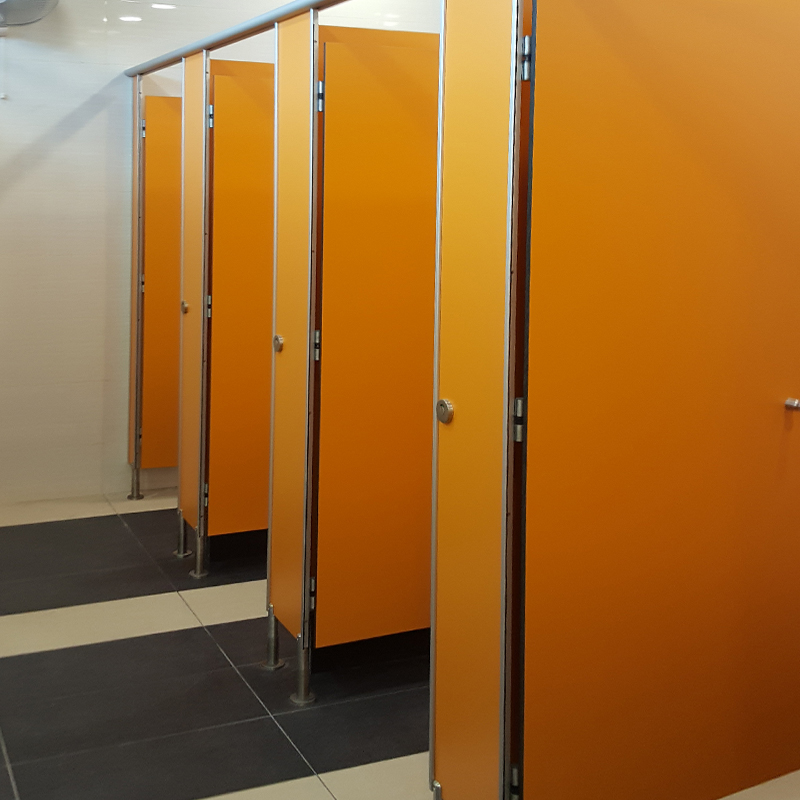

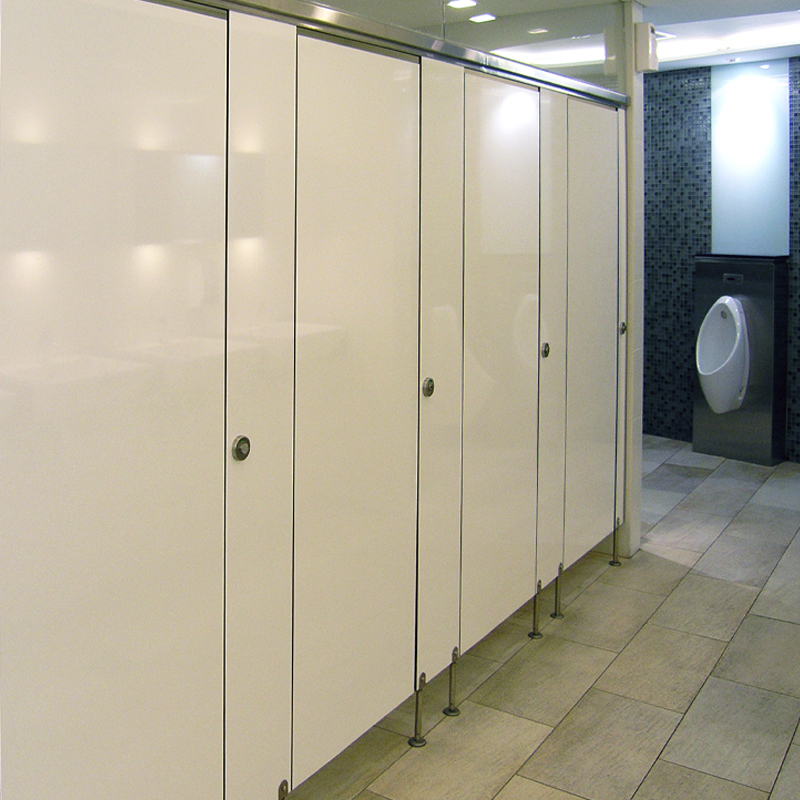

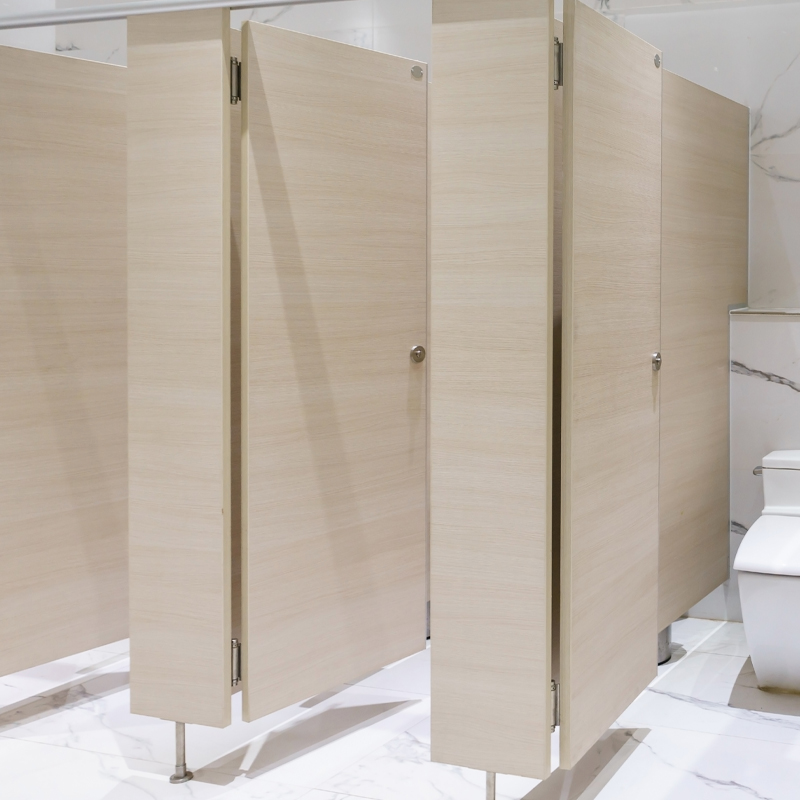

2. Stainless Steel Floor Mount System – Round Foot Pedestal
Sleek, modern, and built for heavy use in offices, malls, public facilities, and commercial buildings.
Stainless Steel Floor Mount Feature & Specifications
Cubicle Doors
- Material: 12mm compact laminate
- Hinges: Heavy-duty gravity self-closing steel hinges
- Edges: Chamfered edges, no metal trimmings
- Recommended Door Widths: Standard door (600mm), Ambulant door (820mm)
- Overall Door Height: 1800mm (measured from FFL to top of door, inclusive of 150mm floor gap)
Cubicle Pilasters
- Material: 12mm compact laminate
- Support: Fixed onto anodised aluminium top rail for maximum rigidity
- Recommended Pilaster Widths: Centre pilaster (300mm), End pilaster (150mm)
- Overall Pilaster Height: 2000mm (FFL to top of overhead rail, inclusive of 150mm floor gap)
Dividing Partitions
- Material: 12mm compact laminate
- Installation: Secured to wall and pilaster using extruded aluminium U-channels
- Maximum Recommended Width: 1830mm
- Overall Partition Height: 1980mm (FFL to top of divider, inclusive of 150mm floor gap)
Hardware Accessories – Stainless Steel
Each cubicle includes premium stainless steel components:
- Stainless steel hinges
- Stainless steel thumbturn lock (TT Lock)
- Stainless steel coat hook
- Stainless steel adjustable leg
- Stainless steel door knob
Aluminium Fittings
- Secured using extruded aluminium top rail for stability
- End panels fixed to wall with heavy-duty aluminium U-channels
Optional upgrades:
- Stainless steel U-channel
- Powder-coated finishes (upon request)

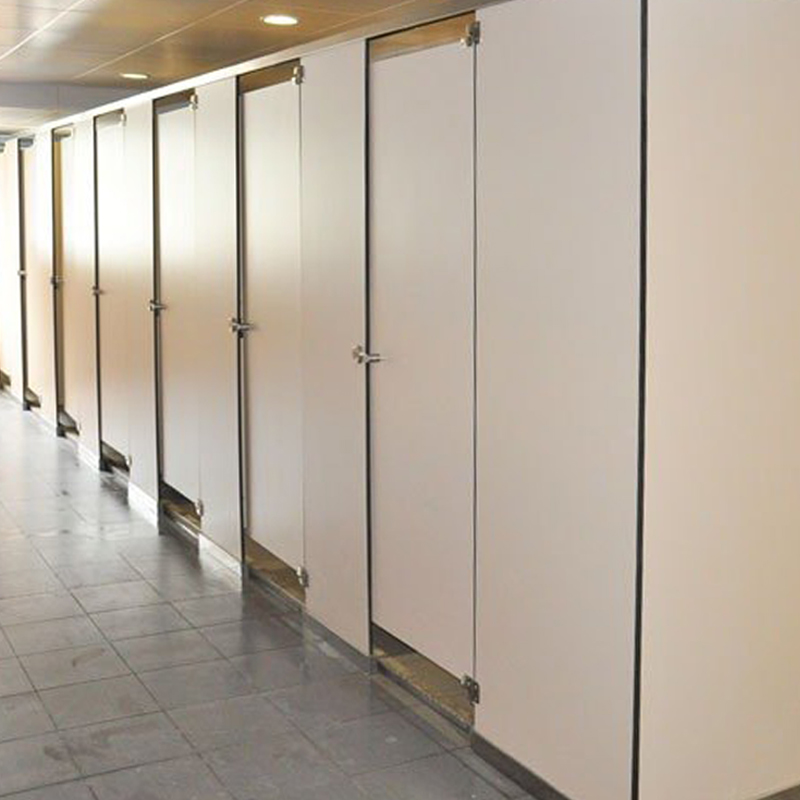

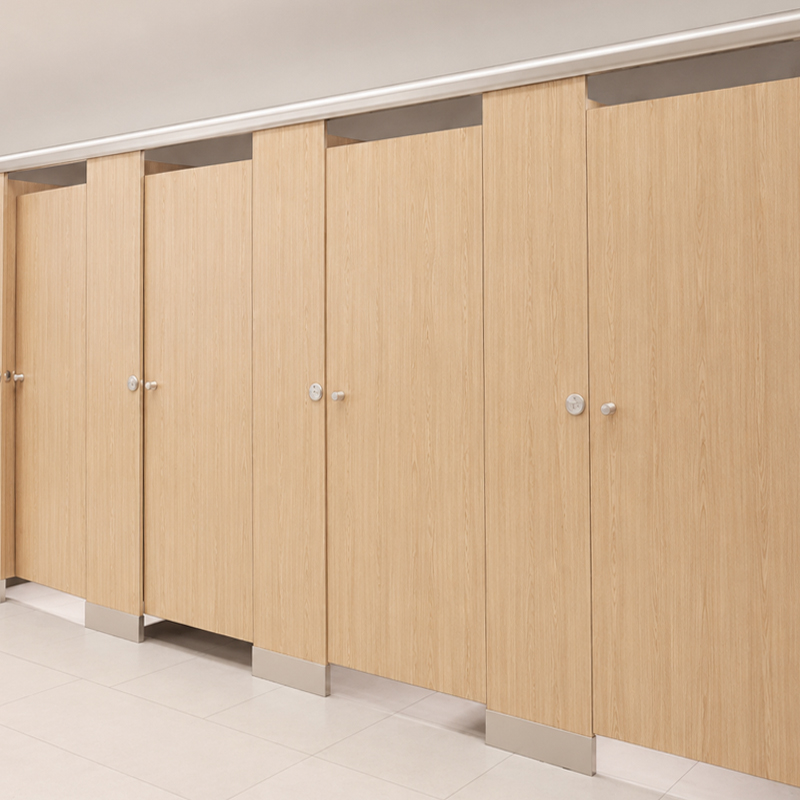

3. Stainless Steel Boxed Foot Pedestal
Our most robust and premium floor mount system, designed for projects that require maximum stability and an architectural finish.
Stainless Steel Floor Mount Feature & Specifications
Cubicle Doors
- Material: 12mm compact laminate
- Hinges: Heavy-duty gravity self-closing stainless steel hinges
- Edges: Chamfered, without metal trimmings
- Recommended Door Widths: Standard door – 600mm Ambulant door – 820mm
- Overall Door Height: 1950mm Measured from FFL to top of door Includes 110mm floor gap
Cubicle Pilasters
- Material: 12mm compact laminate
- Support: Secured with heavy-duty L-angle plates and concealed by Stainless Steel Shoe Box to FFL
- Recommended Pilaster Widths: Centre pilaster – 300mm End pilaster – 150mm
- Overall Pilaster Height: 2000mm Measured from FFL to top of pilaster (no rail indicated)
Dividing Partitions
- Material: 12mm compact laminate
- Installation: Secured to wall and pilaster using extruded aluminium U-channels
- Maximum Recommended Width: 1830mm
- Overall Divider Height: 1930mm Measured from FFL to top of divider Inclusive of 110mm floor gap
Hardware Accessories – Stainless Steel
Each cubicle comes with:
- Stainless Steel thumbturn lockset (with emergency coin release)
- Heavy-duty self-closing stainless steel hinges
- Stainless Steel coat hook with rubber stopper
- Stainless Steel 42mm door knob
Hardware Fittings
- Heavy-duty L-angle plates, fully concealed within the Stainless Steel Shoe Box to FFL
- End panels secured with heavy-duty extruded aluminium U-channels
Optional upgrades:
- Stainless steel U-channel
- Powder-coated finishes
