Top Hung (Ceiling Mounted) Cubicle Systems
Our Top Hung (Ceiling Mounted) Toilet Cubicle Systems are designed for modern commercial washrooms where a clean, spacious appearance and easy floor maintenance are priorities. Suspended from a reinforced overhead support structure, this leg-free system creates an open aesthetic while allowing unobstructed floor cleaning.
Built for Wet & Humid Environments
Engineered to withstand heavy daily use in Singapore’s wet, humid, and high-traffic conditions without warping, swelling, or delamination.
Clean-Friendly Surfaces
Highly Vandal-Resistant and waterproof surfaces allow quick and effortless cleaning, while the dense HPL/PVC structure offers exceptional resistance against scratches, graffiti, and impact.
Colour & Surface Stability
Fade-resistant materials that maintain their colour, finish, and structural stability over years of use even in demanding commercial environments.
Manufactured using high-quality HPL Phenolic Compact Laminate or PVC boards, our ceiling mounted toilet cubicles deliver exceptional durability and reliable performance. Ideal for offices, shopping malls, hotels, educational institutions, hospitals, and public facilities, BestCube's Top Hung Toilet Cubicle Systems offer a premium washroom solution that combines functionality, hygiene, and contemporary design.

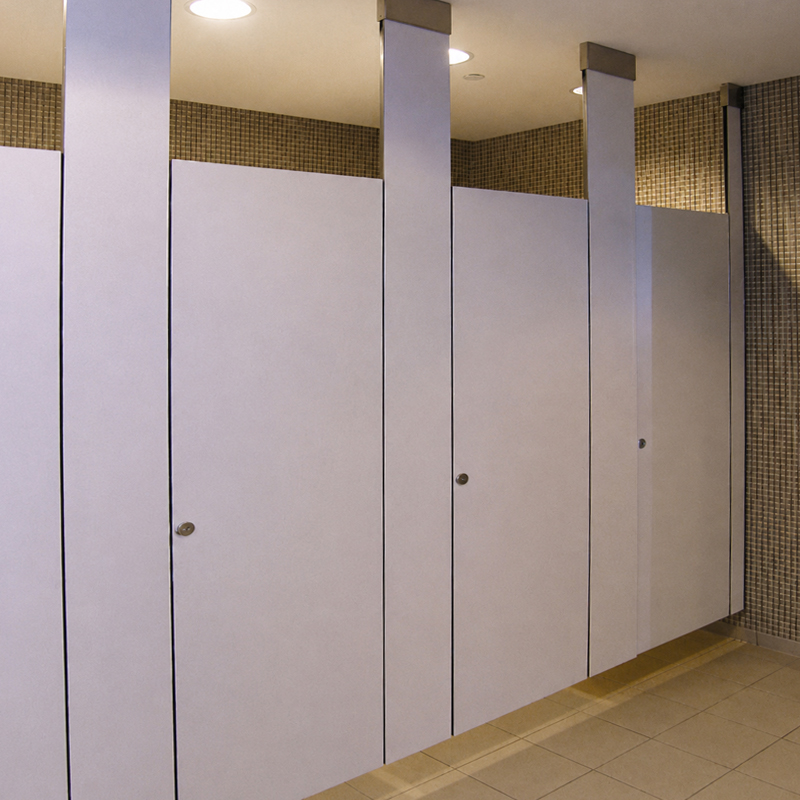

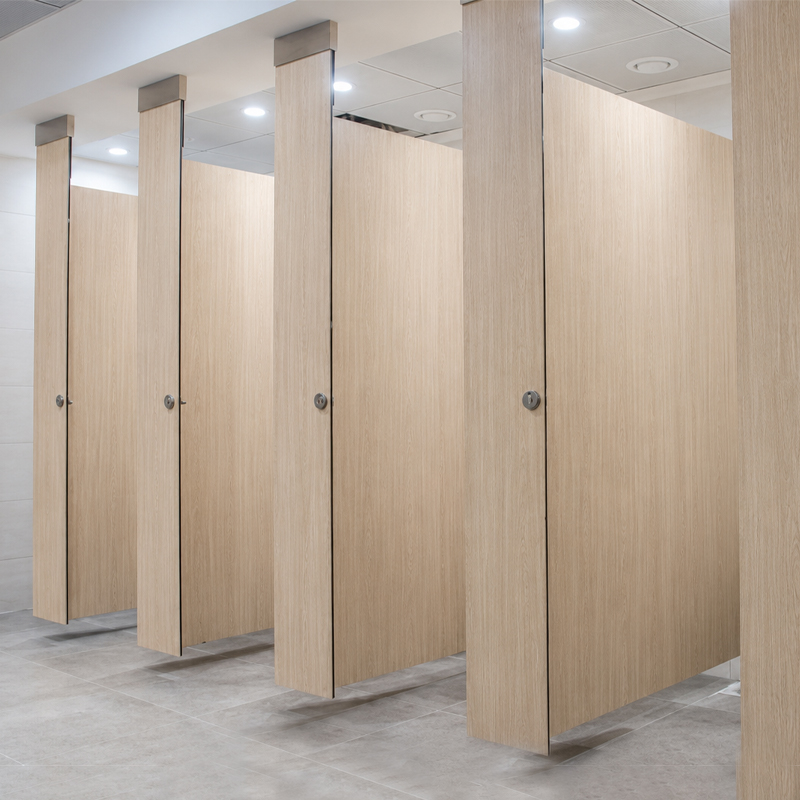

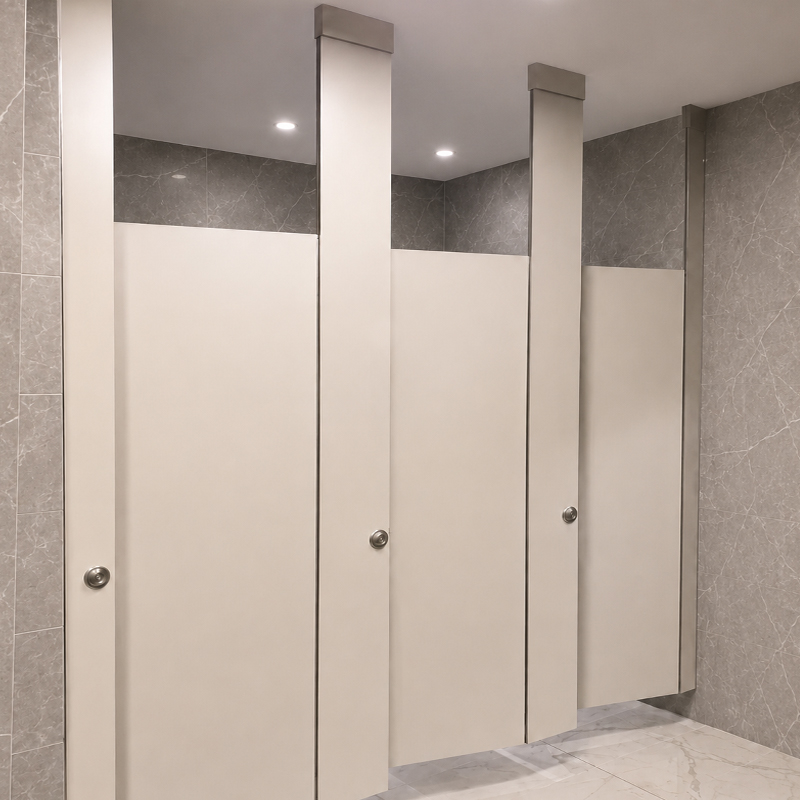

Ceiling Mounted Cubicle System
Bestcube “Leg Free” Cubicle System offer a clean, modern appearance by eliminating floor-mounted support legs. Suspended from a reinforced overhead structure, this system creates a spacious look while allowing unobstructed floor cleaning, making it a popular choice for premium commercial washrooms.
Top Hung Toilet Cubicle Systems Feature & Specifications
Cubicle Doors
- Material: 18mm compact laminate
- Hinges: Heavy-duty gravity self-closing stainless steel hinges
- Edges: Chamfered edges, no metal trimmings
- Recommended Door Widths: Standard door – 600mm Ambulant door – 820mm
- Overall Door Height: 1980mm (measured from FFL to top of door, inclusive of 150mm floor gap)
Cubicle Pilasters
- Material: 18mm compact laminate
- Support: Heavy-duty galvanised hollow section top rail concealed above the false ceiling
- Recommended Pilaster Widths: Centre pilaster – 300mm End pilaster – 150mm
- Overall Pilaster Height: 2400mm–3000mm (FFL to top of overhead rail, inclusive of 150mm floor gap)
Dividing Partitions
- Material: 12mm compact laminate
- Installation: Secured to wall and pilaster using extruded aluminium U-channels
- Maximum Recommended Width: 1830mm
- Overall Partition Height: 1980mm (FFL to top of divider, inclusive of 150mm floor gap)
Hardware Accessories – Stainless Steel
Each cubicle comes with:
- Stainless steel thumbturn lockset (with emergency coin release)
- Heavy-duty self-closing stainless steel hinges (adjustable for fully closed, partially open or fully open positions)
- Stainless steel coat hook with rubber stopper
- Stainless steel 42mm door knob
Hardware Fittings
- Heavy-duty galvanised hollow section top rail concealed above the false ceiling
- End panels secured using heavy-duty extruded aluminium U-channels
- Optional stainless steel U-channels
- Powder-coated finish available upon request
